Ethyl Alcohol Solvent Distillation Ethanol Recovery System Evaporator Concentrator

Ethyl Alcohol Solvent Distillation Ethanol Recovery System Evaporator Concentrator

Calstar solvent recovery systems are used extensively in recycling applications and to reduce manufacturing waste. A solvent recovery system, or solvent reclaiming equipment, usually includes the use of a heating component and a condensation component to distill the liquid and separate the solvent from water.
Send Inquiry
Chat Now

Product Introduction

We focus on product quality and cost accounting from raw material procurement, planned production, warehousing, logistics, and sales hoping to contribute to the market with solvent recycling machine for sale, solvent saver, solvent cleaning device of high quality and low price. We believe that only through continuous learning and improvement of each employee can our company grow and become a leader in the industry. Sincerity is not only the cornerstone of our century old foundation, but also the driving force for us to build a first-class group. We present high-quality, environmentally friendly, low-carbon, green products to meet the needs of different levels of consumption in all aspects. Our company adheres to the corporate mission of human stability and social harmony to develop stably and sustainably.

Product Introduction

Calstar solvent recovery systems are used extensively in recycling applications and to reduce manufacturing waste. A solvent recovery system, or solvent reclaiming equipment, usually includes the use of a heating component and a condensation component to distill the liquid and separate the solvent from water. Our solvent recovery equipment could work with a vacuum unit that enables the system to operate at temperatures that are typically lower than the solvent’s boiling point. In this case, the whole recovery process will be accelerated. Also it’s able to handle solvents which may have very high boiling points.

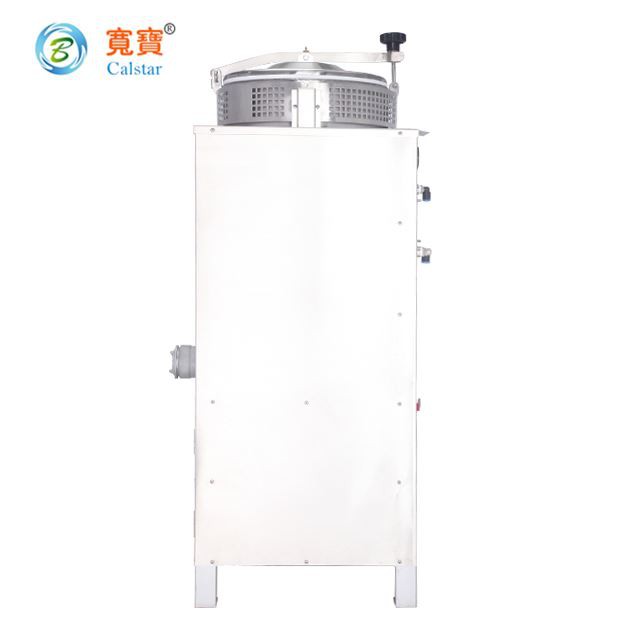

Product Photos

IMG_8065IMG_8479


Detailed images

B60Ex_detail_1


Technical data

Imput volume

60 L

Length

587 mm

Capacity of Tank

80 L

Width

827 mm

Capacity of heat transfer oil

24 L

Height

1480 mm

Power of heater

5.0 KW

Weight

104 KG

Max power

5.1 KW

Temp. of operation

50~190 °C

Max current

23.2 A

Ideal room temp.

5~30 °C

Power supply

220V AC/50 HZ

Noise

around 50 db

Recovery rate

95%

Voltage of control unit

24V DC

Heating method

Indirect heating by heat transfer oil

Cycle time

around 3.5 Hours

Flow of cooling water

>120 L/H

Cooling system

Water-cooled

Max pressure of Condenser

30 Bar

Temp. of cooling water

25°C suggested

Solvent imput

Manual ( automatic imput unit is available)

Operational Temp. of Condenser

-160°C~+200°C

Vacuum unit

None(option addable)

Material of case

Carbon steel with paint, or SUS304

Material of tank

SUS304, double layers



NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.


Recoverable solvents list by solvent purification system

applications


8 benefits of solvent purification machine

eight benefits


Main Features of solvent purification equipment

main feature


Packing and Delivery

Packing
1. Seaworthy standard wooden box.
Delivery
1. 5 days after payment if equipment in stock, or 30 days after payment if equipment customized.

image007_


Company profile

calstar history(003)

Certifications

A30_60_90certificates


Our clients

partners


FAQ

1. Can you ask your existing clients to send some pics or even report about how your machine is currently performing?

All our clients are confidential. You could check our successful case on our website 'www.solventrecyclingsystem.com'.

2. If I have other goods from China, is it possible to deliver all the goods together to me?

Absolutely possible, you could tell us about other goods and suppliers. Then we will deal with them and handling this matter well.

3. Paying freight is not convenient for us, can you take care of the freight?

Surely we can. Then the trade terms changed to be CFR.

4. Can you deliver the machine to us by air?

Yes, we can. Please tell me your address. And we will send detailed shipping cost to you.

1. Can I get a machine’s demo?

Sorry that we couldn’t offer any sample services. But we could arrange a sample trial if you could share details about your waste solvents.


We are committed to innovative, environmentally friendly Ethyl Alcohol Solvent Distillation Ethanol Recovery System Evaporator Concentrator that address environmental challenges and drive economic growth. We improve the internal management of the company and continuously enhance the operational efficiency and sustainable development of the company. We sincerely welcome all merchants and enterprises at home and abroad who are interested in cooperating and establishing long-term and stable business relationship with us to visit and guide in order to seek common development.
