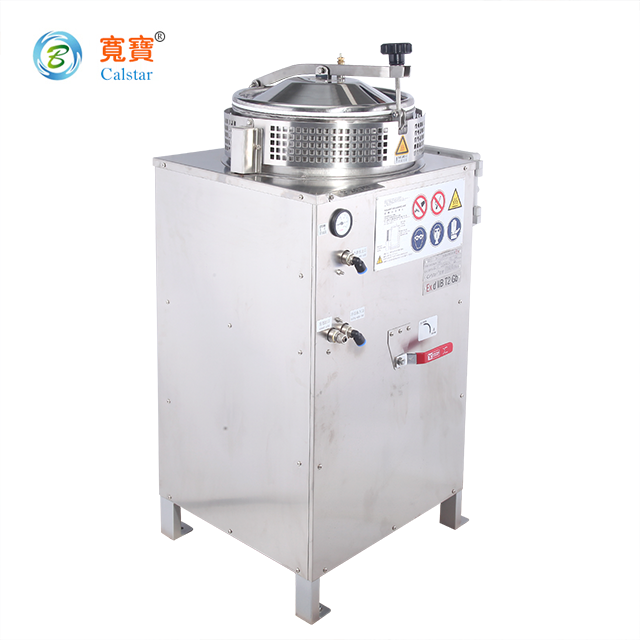

B60 solvent recovery machine is an efficient and environmentally friendly equipment for recycling solvents in the chemical industry, which can effectively reduce the production cost and environmental pollution of enterprises.
Instructions
The machine uses low temperature distillation technology to recover a variety of common solvents, including ethyl acetate, acetone, toluene, chloride, etc. At the same time, the machine has a compact structure, small size and simple operation, and the operator does not need professional knowledge and training.
data
| Imput volume | 60 L | Length | 587 mm |
| Capacity of Tank | 80 L | Width | 827 mm |
| Capacity of heat transfer oil | 24 L | Height | 1480 mm |
| Power of heater | 5.0 KW | Weight | 104 KG |
| Max power | 5.1 KW | Temp. of operation | 50~190 °C |
| Max current | 23.2 A | Ideal room temp. | 5~30°C |
| Power supply | 220V AC/50 HZ | Noise | around 50 db |
| Recovery rate | 95% | Voltage of control unit | 24V DC |
| Heating method | Indirect heating by heat transfer oil | Cycle time | around 3.5 Hours |
| Flow of cooling water | >120 L/H | Cooling system | Water-cooled |
| Max pressure of Condenser | 30 Bar | Temp. of cooling water | 25°C suggested |
| Solvent imput | Manual ( automatic imput unit is available) | Operational Temp. of Condenser | -160°C~+200°C |
| Vacuum unit | None(option addable) | Material of case | Carbon steel with paint, or SUS304 |
| Material of tank | SUS304, double layers |
detail
In terms of details, the B60 solvent recovery machine also has an intelligent control system, which can realize the automatic adjustment of concentration and alarm function to ensure safety during operation. Moreover, the unit has a 60-liter distillation barrel, which greatly improves operational efficiency and performance stability.
use
The application range is very wide, can be widely used in chemical, paint, printing, ink, pharmaceutical, food and other industries in the production process of waste solvent recovery. At the same time, the B60 solvent recovery machine can also greatly reduce the raw material procurement costs of enterprises and improve production profits.
Company service
Our company also provides high-quality logistics services to ensure that products reach customers quickly. Our company is a professional engaged in environmental protection equipment production and sales of enterprises, to provide customers with comprehensive quality sales and after-sales service.
FAQ:
1. How high is the recovery efficiency of B60 solvent recovery machine?
A: The device has a recycling efficiency of more than 95%.
2. Does the B60 solvent recovery machine need professional maintenance personnel?
A: No need. The device can be automatically maintained and intelligent alarm, operation is very simple.
3. Does the product have warranty service?
A: We offer a one-year warranty.
In modern society, environmental protection has become an inevitable trend, B60 solvent recovery machine is the resulting new environmental protection equipment, its use can not only reduce the production cost of enterprises, improve production efficiency, but also contribute to environmental protection, worth widely promoted.
