Product Introduction
Solvent recovery systems use the process of distillation, which separates volatile and nonvolatile solutions in a solvent. The solution is boiled and the vapors are condensed back into liquid in a separate tank, very similar to how a vapor degreaser works. The various constituents of the solvent and contaminants each boil at different temperatures: typically oils and sludge are much higher than solvents. A good example is paint thinner which is used to clean paint off paint guns and parts; the solvent will be boiled at much lower temperatures than paint, so boiling the mixture will result in condensed pure solvent in a separate tank and the paint sludge components in another.

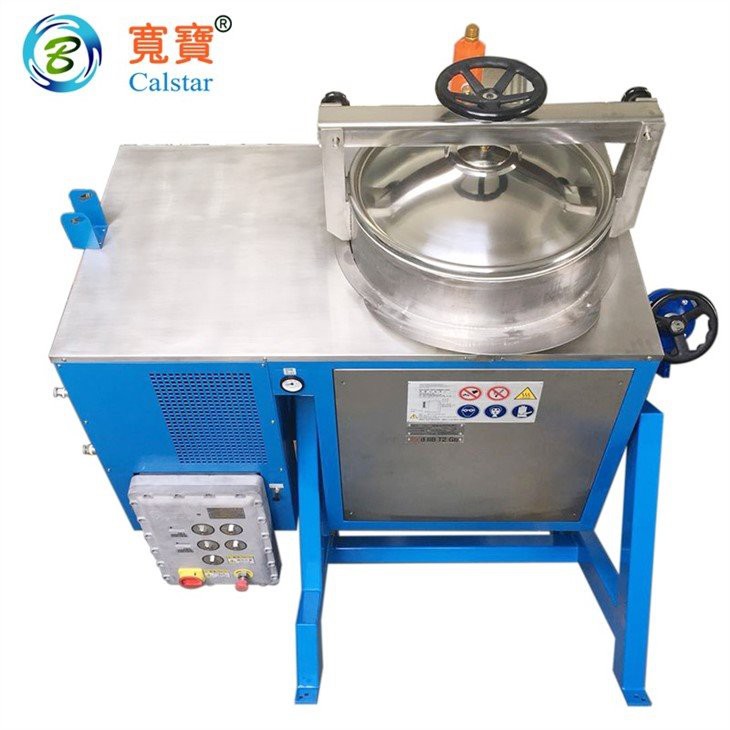

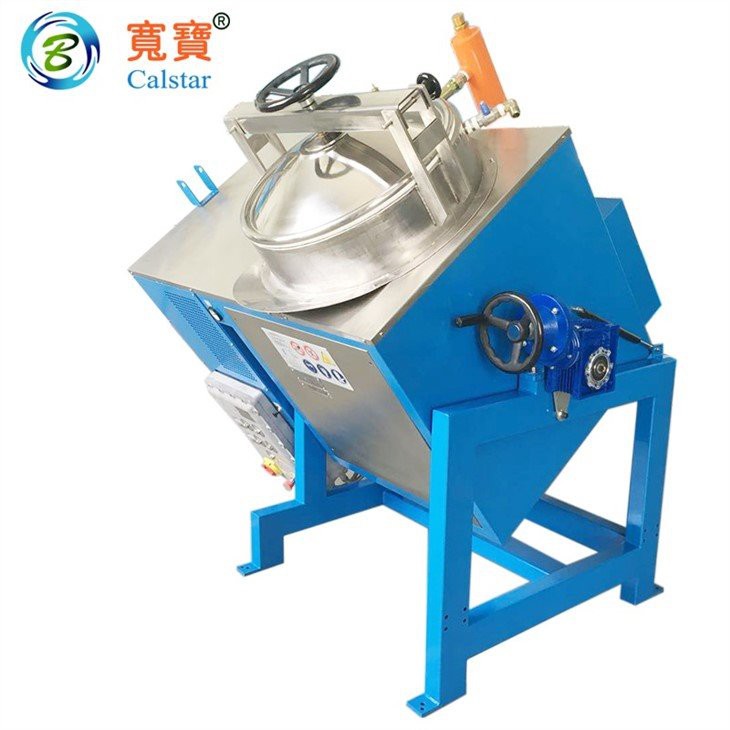

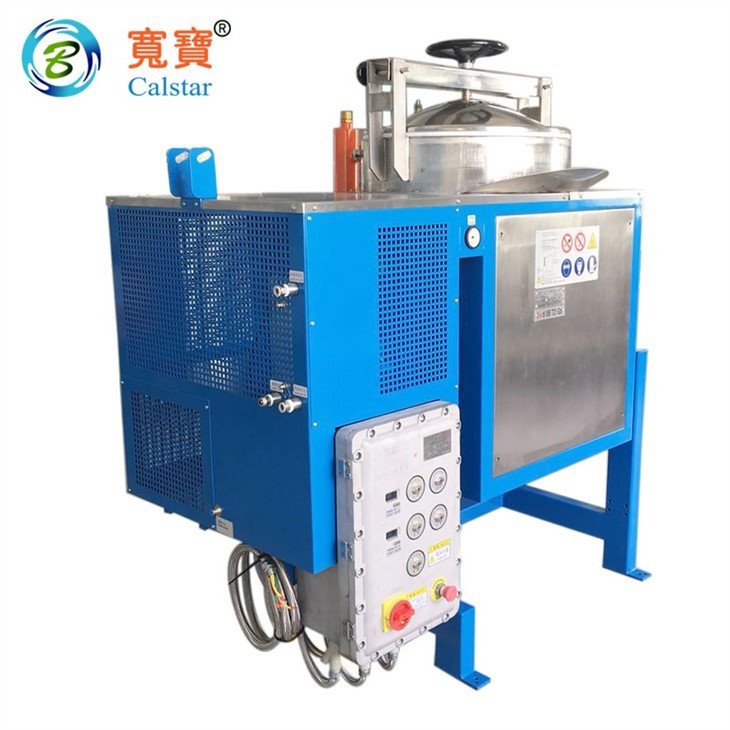

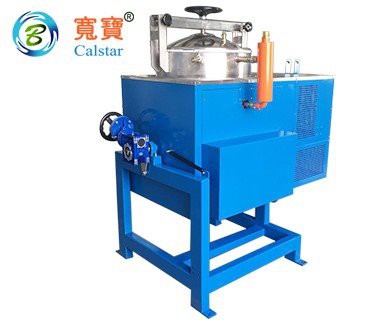

Product Photos
 |  |
Detailed images
Technical data
Input volume | 125 L | Length | 1885 mm |
Capacity of Tank | 210 L | Width | 1130 mm |
Capacity of heat transfer oil | 88 L | Height | 1730 mm |
Power of heater | 12.0 KW | Weight | 571 KG |
Power of fan | 0.37 KW | Temp. of operation | 50~190 °C |
Max power | 12.8 KW | Ideal room temp. | 5~30 °C |
Max current | 19.4 A | Noise | around 65 db. |
Power supply | 380V AC/50 HZ | Voltage of control unit | 220V AC |
Heating method | Indirect heating by heat transfer oil | Cycle time | around 3.5 Hours |
Recovery rate | 95% | Cooling system | Air-cooled |
Solvent input | Manual (automatic input unit is addable) | Material of case | Carbon steel with paint, or SUS304 |
Vacuum unit | None (option addable) | Material of tank | SUS304, double layers |
NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.
Recoverable solvents list by solvent reclaiming machine
8 benefits of solvent reclaiming device
Main Features of solvent reclaiming unit
Packing and Delivery
Packing
1. Seaworthy standard wooden box.
Delivery
1. 5 days after payment if equipment in stock, or 30 days after payment if equipment customized.
Company profile
Certifications
Our clients
FAQ
1. Some of solvents are toxic, can you solvent recycling units handle these solvents?
Our machine is capable of recycling most of organic solvents. Please contact our sales person and share details of your solvents. We will evaluate our machines’ capability.
2. Do you have any overseas offices?
Yes, we have offices in the US and Taiwan.
3. Is there any consumables for your machines?
Yes, there are three consumables, thermal oil and seal-rings.
4. Can you do OEM and ODM?
Yes, OEM and ODM are both welcome with us. Also buyer label offered is available as well.
5. What certificates are your products in compliance with?
Our solvent recovery units are in compliance with Chinese Explosion-proof standard(CNEX), European standard(ATEX) and CE. And our company has be qualified by ISO9001 and ISO14001.
