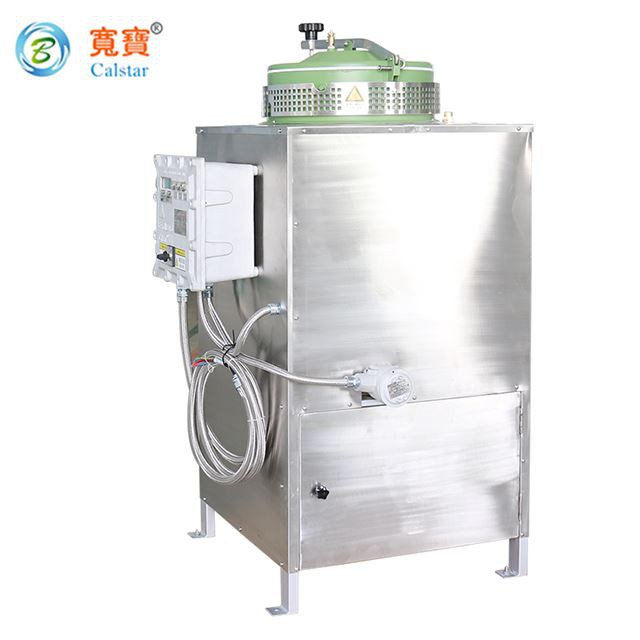

Vacuum distillation recovery equipment is a special equipment for recovering organic solutions, it uses advanced vacuum distillation technology, can quickly and efficiently recover and purify organic solutions, thereby reducing pollution and improving efficiency.
Recycling principle: Various organic solvents are often used in paint production, which will remain in the paint after use, causing pollution to the environment. The equipment uses vacuum distillation technology to vaporize the organic solvent in the paint and recover it after proper process treatment, thus playing the role of purifying the environment.
data：
| Imput volume | 90 L | Length | 697 mm |
| Capacity of Tank | 120 L | Width | 937 mm |
| Capacity of heat transfer oil | 36 L | Height | 1480 mm |
| Power of heater | 8.0 KW | Weight | 151 KG |
| Max power | 8.1 KW | Temp. of operation | 50~190°C |
| Max current | 12.3 A | Ideal room temp. | 5~30 °C |
| Power supply | 380V AC/50 HZ | Noise | around 50 db |
| Recovery rate | 95% | Voltage of control unit | 24V DC |
| Heating method | Indirect heating by heat transfer oil | Cycle time | around 4 Hours |
| Flow of cooling water | >120 L/H | Cooling system | Water-cooled |
| Max pressure of Condenser | 30 Bar | Temp. of cooling water | 25°C suggested |
| Solvent imput | Manual ( automatic imput unit is available) | Operational Temp. of Condenser | -160°C~+200°C |
| Vacuum unit | None(option addable) | Material of case | Carbon steel with paint, or SUS304 |
Equipment details: Our custom vacuum distillation recovery equipment for B90 coating uses high-quality materials and is equipped with an intelligent control system that precisely controls temperature and pressure, thus ensuring efficient recovery results. At the same time, the equipment uses ultraviolet lamps and oxidation catalysis technology, which can completely decompose organic matter, ensuring that the recovered liquid is pure and free of impurities.
What is organic solution: Organic solution refers to the solution of soluble compounds in chemistry, which is often used for the dispersion and mixing of powders or colloids. Common organic solvents include ethanol, acetone, benzene, methanol, etc.
Recyclable solutions: Recyclable solutions are organic liquids that have been distilled so that the solvent is removed and the liquid components are well maintained, and they can be reused in areas such as paint production.
FAQ:
Q: Which solvents are suitable for the custom vacuum distillation recovery equipment of Kuanbao B90 coating?
A: Our equipment is suitable for diethyl stearate, acetone, toluene, ethyl formate, ethanol and other organic solvents.
Q: I use a lot of organic solvents, which device will best meet my needs?
A: If you need to process organic solvents on a large scale, we recommend the use of large vacuum distillation equipment, which has a large processing capacity and can recover organic solutions quickly and efficiently.
In short, Kuanbao B90 coating custom vacuum distillation recycling equipment is an efficient, energy saving and environmental protection equipment, which can save costs for coating manufacturers and reduce environmental pollution. We look forward to working with you to promote the sustainable development of the coatings production industry.
