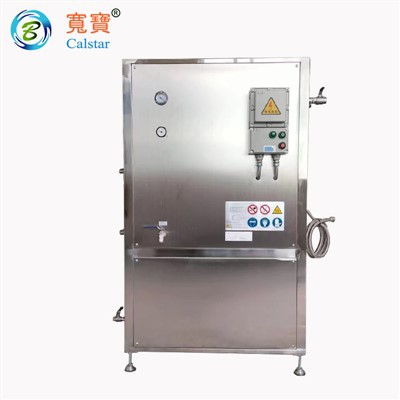

VOC Recovery Unit

1. Solvent storage capacity (L): 450;
2. Tank volume (L): 550;
3. Tank material: SUS304 stainless steel, thickness 2.0mm;
4. Cooling water: approximately 30L/min;
5. Pump working fluid flow rate (L/min): 3.2;
6. Maximum suction volume: 110m³/h;
7. Working temperature: -20 to 40℃;
8. Tank pressure-bearing capacity: negative pressure 760mmHg to positive pressure 6bar;
9. Tank pressure-bearing capacity: -0.097Mpa;
10. Standard vacuum degree: -0.092Mpa;
11. Recovery rate: 95%;
12. Machine size (mm): 1560×1200×1750mm (length, width, height); (For reference only, actual size applies).
