Product Introduction
Common thinners for paints: 200# solvent petrol, Aromatic toluene, xylene, 200# solvent, acetic ether, n-butyl acetate, acetone, MEK, BCS, ECS etc.. These solvents are used to lower viscosity of paint and improve performance.
Paint thinner are able to degrease parts before coating and cleaning after coating. You could soak metal parts into these thinners to degrease, and also increase banding force of paints. The used thinners would be a great loss if you have got a Calstar thinner recycler. Collecting the used thinners and filling it into Calstar explosion-proof solvent recycling machine, clean thinners will be generated in 30 minutes. And recovered thinners can be repeatedly reused. Just hurry and take an action.

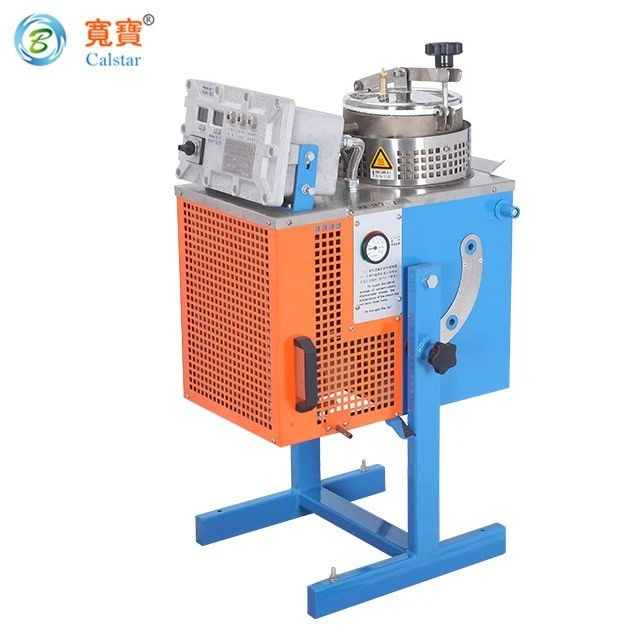

Product Photos
 |  |

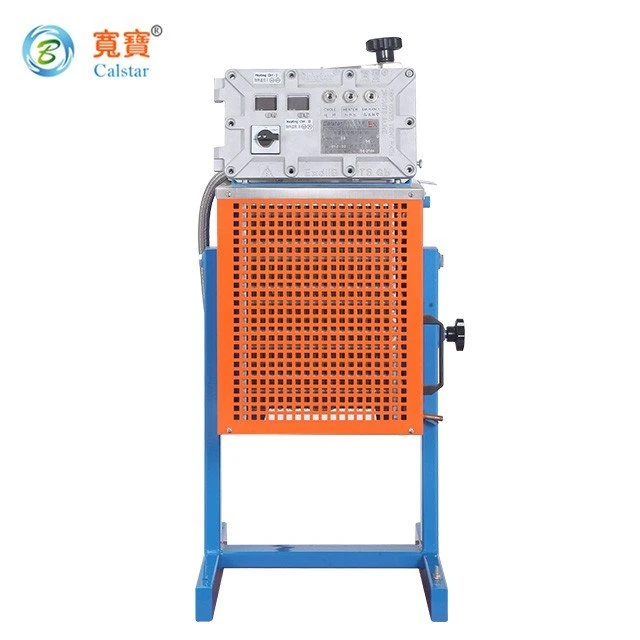

Detailed images
Technical data
Imput volume | 10 L | Length | 655 mm |
Capacity of Tank | 15 L | Width | 505 mm |
Capacity of heat transfer oil | 5.5 L | Height | 1050 mm |
Power of heater | 2.0 KW | Weight | 62 KG |
Power of fan | 0.09 KW | Temp. of operation | 50~190 °C |
Max power | 2.2 KW | Ideal room temp. | 5~30 °C |
Max current | 9.5 A | Noise | around 65 db |
Power supply | 220V AC/50 HZ | Voltage of control unit | 24V DC |
Heating method | Indirect heating by heat transfer oil | Cycle time | around 1.5 Hours |
Recovery rate | 95% | Cooling system | Air-cooled |
Solvent imput | Manual ( automatic imput unit is addable) | Material of case | Carbon steel with paint |
Vacuum unit | None(option addable) | Material of tank | SUS304, double layers |
NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.
Recoverable solvents list by solvent recycling equipment
8 benefits of solvent distillation machine
Main Features of solvent distillation unit
Packing and Delivery
Packing
1. Seaworthy standard wooden box.
Delivery
1. 5 days after payment if equipment in stock, or 30 days after payment if equipment customized.
Company profile
Certifications
Our clients
FAQ
1. Is DDP trade terms good for you?
Sorry that the shipping agents don’t offer DDP service to most countries. DDU would be good for us.
2. Can I get an installation drawing before? So I could evaluate whether there is enough space for installation?
Yes, we can send installation drawing for your reference.
3. What after-sales service do you offer?
We offer video technical support, online training service.
4. Is there any possibility if I visited your factory?
You are always welcome to visit us. Just inform us about your schedule. Then we will lead you to our factory or pick you up at the airport.
5. Is there any third party which could protect interests for both of us when we sign the contract?
Yes, we also welcome clients going Alibaba.com to place orders to us.
