Product Description

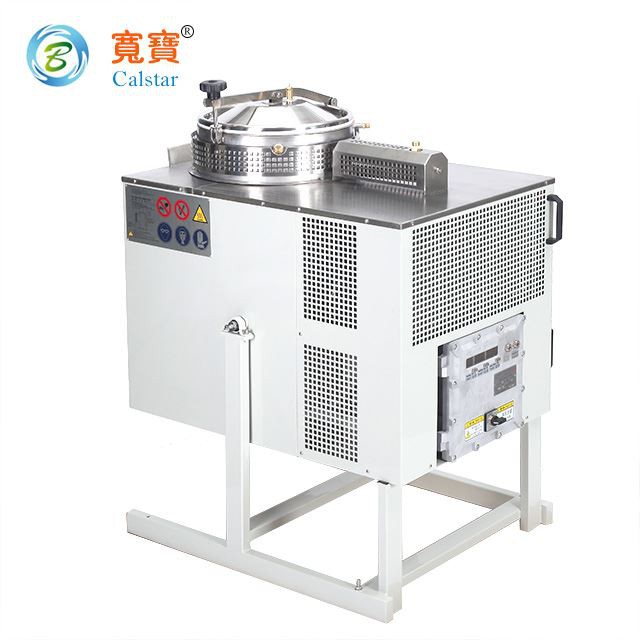

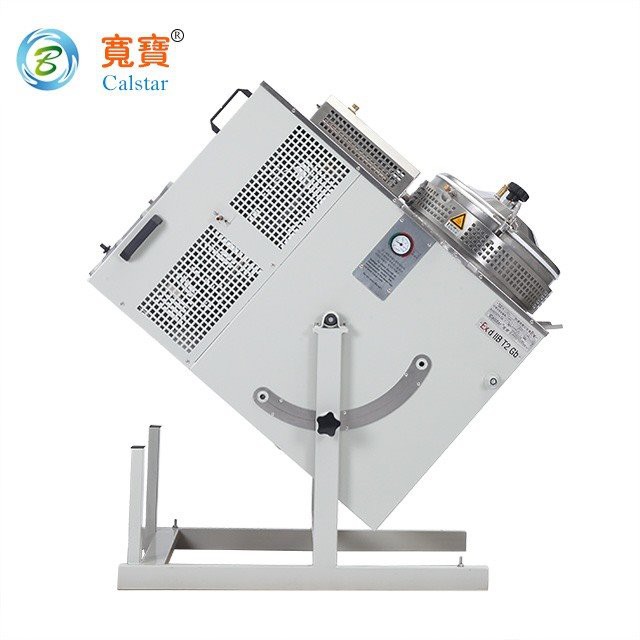

A90Ex, solvent recovery still, is complied with Chinese explosion-proof standard (CNEX: Ex d IIB T2 Gb, certificate No. CNEx16.2110X) and European standard (ATEX). The design of Tilting-type and air-cooled system are for better operation of solvent recovery. it’s designed with air cooled condenser. After distilling and cooling for proximate 3.5 hours, waste solvent will be purified and ready to reuse.
A90Ex solvent recovery still is able to recover around 500L waste solvents by running 24 hours.
Product Photos
 |  |
Detailed Images
Technical Data
Imput volume | 90 L | Length | 1050 mm |
Capacity of Tank | 120 L | Width | 750 mm |
Capacity of heat transfer oil | 36 L | Height | 1280 mm |
Power of heater | 8.0 KW | Weight | 175 KG |
Power of fan | 0.09 KW | Temp. of operation | 50~190 °C |
Max power | 8.2 KW | Ideal room temp. | 5~30 °C |
Max current | 12.3 A | Noise | around 65 db |
Power supply | 380V AC/50 HZ | Voltage of control unit | 24V DC |
Heating method | Indirect heating by heat transfer oil | Cycle time | around 3.5 Hours |
Recovery rate | 95% | Cooling system | Air-cooled |
Solvent imput | Manual ( automatic imput unit is addable) | Material of case | Carbon steel with paint, or SUS304 |
Vacuum unit | None(option addable) | Material of tank | SUS304, double layers |
NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little
deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.

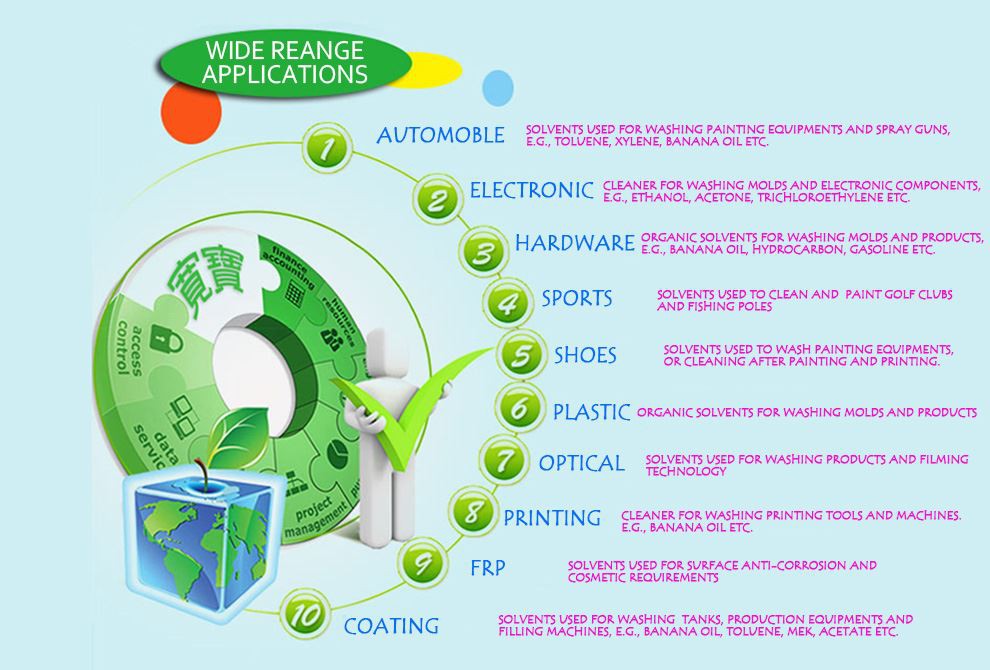

Applications of waste solvent recovery unit
8 benefits of solvent recycler
Main Features of solvent recovery distillation equipment
Packing
Seaworth standard wooden box.
Delivery
1. 5 days after payment if equipment in stock, or 30 days after payment if equipment customized.
Company Profile
Certificates
Our Clients
FAQ
1. Are you a trading company or manufacturer?
Our company is a top leading company specializing in solvent recovery machines for 27-year.
2. How long does your warranty last?
It lasts three years for completed solvent recovery system except Heat transfer oil, Gaskets.
3. Can you do OEM and ODM?
Yes, OEM and ODM are both welcome with us. Also buyer label offered is available as well.
4. What certificates are your products in compliance with?
Our solvent recovery units are in compliance with Chinese Explosion-proof standard(CNEX), European standard(ATEX) and CE. And our company has be qualified by ISO9001 and ISO14001.
5. What kinds of payment do you accept?
L/C and T/T are both acceptable.
