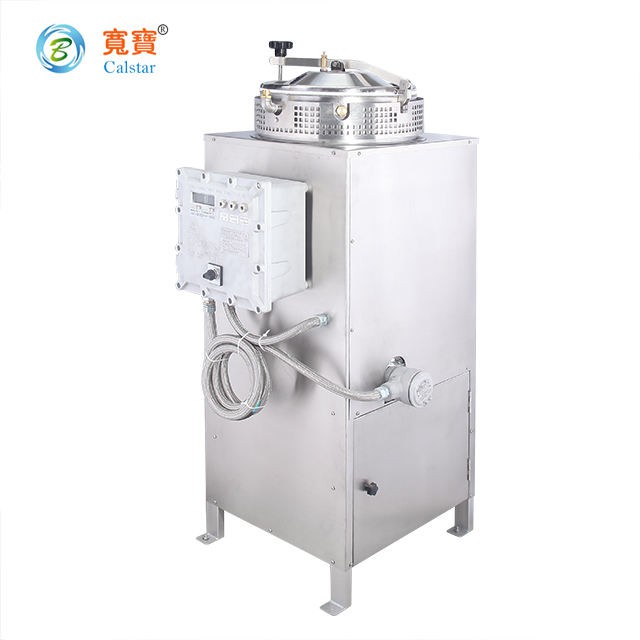

The B425Ex waste solvent recovery and treatment unit is an efficient waste solvent treatment equipment. The device recyles waste solvents so that they can be reused. The water cooling design greatly improves the stability of the equipment.
1. Recycling principle
B425Ex waste solvent recovery and treatment unit adopts vacuum distillation technology to recover waste solvent. In the recovery process, the waste solvent is first heated to a boiling point, so that it evaporates, and then cooled by a condenser, so that it is converted to a liquid state, and the solvent and residue are separated by a separator. After this treatment, the harmful substances in the waste solvent can be effectively removed, making it a reusable cleaning solvent.
2: Details
The B425Ex waste solvent recovery and treatment unit uses a fully automatic control system, which is easy to operate by pressing the start button. At work, the waste gas generated during the recovery process is treated by special treatment equipment to meet environmental protection requirements. At the same time, the raw materials of this equipment are imported stainless steel, which ensures the corrosion resistance and stability of the equipment.
3. data
| Imput volume | 425 L | Length | 2108 mm |
| Capacity of Tank | 550 L | Width | 1534 mm |
| Capacity of heat transfer oil | 185 L | Height | 1955 mm |
| Power of heater | 36.0 KW | Weight | 718 KG |
| Max power | 36.1 KW | Temp. of operation | 50~190 °C |
| Max current | 54.7 A | Ideal room temp. | 5~30 °C |
| Power supply | 380V AC/50 HZ | Noise | around 50 db |
| Recovery rate | 95% | Voltage of control unit | 220V AC |
| Heating method | Indirect heating by heat transfer oil | Cycle time | around 4.5 Hours |
| Flow of cooling water | >150 L/H | Cooling system | Water-cooled |
| Max pressure of Condenser | 30 Bar | Temp. of cooling water | 25°C suggested |
| Solvent imput | Manual ( automatic imput unit is available) | Operational Temp. of Condenser | -160°C~+200°C |
| Vacuum unit | None(option addable) | Material of case | Carbon steel with paint |
| Material of tank | SUS304, double layers |
4. Recycling scope
The B425Ex waste solvent recovery and treatment unit is suitable for the recovery and treatment of various organic solvents, such as acetone, toluene, chloride, alcohol, etc. After the waste solvent is recovered, its quality and stability can be guaranteed, and it can meet the requirements of reuse.
5. Foreground of the recycling machine
With the continuous strengthening of national environmental protection policies and people's high attention to environmental protection issues, waste solvent recycling has become the future development direction. B425Ex waste solvent recovery and treatment unit adopts advanced recycling technology, which can effectively treat waste solvents, reduce environmental pollution, and improve the production efficiency of enterprises.
6. FAQ
Q: How efficient is the B425Ex waste solvent recovery and treatment unit?
A: The B425Ex waste solvent recovery and treatment unit adopts vacuum distillation technology, which can efficiently recover the waste solvent with a treatment efficiency of more than 95%.
Q: How difficult is the maintenance of the B425Ex waste solvent recovery and treatment unit?
A: B425Ex waste solvent recovery and treatment unit is easy to use and maintain. Usually only need to carry out simple cleaning and maintenance, without professional maintenance and maintenance.
B425Ex waste solvent recovery and treatment unit is an efficient, convenient and environmentally friendly waste solvent treatment equipment, which will have a wide application prospect in the future development.
